one,System Parameters:
Project Name |
System Parameters |
Model |
KM-L300Wheel Washer |
EquipmentSpecification |
2200(W)×5340(L)×1000(H) |
Vehicle Parameters |
Vehicles with a width below 2800mm within 100T |
Sprinkler pressure |
3 ~ 5 Kg/㎠ |
electricity consumption |
380V × 3-phase × 50Hz |
power consumption |
15.5Kw/h |
Product weight |
4500Kg |
Applicable vehicles |
Various heavy duty engineering vehicles, garbage transport vehicles, etc. within 100T |
water consumption |
10.800ℓ |
Operation method |
Through the Automatic Control System of Sensor |
sludge discharge |
Automatic type through conveyor belt |
Two, System Introduction:

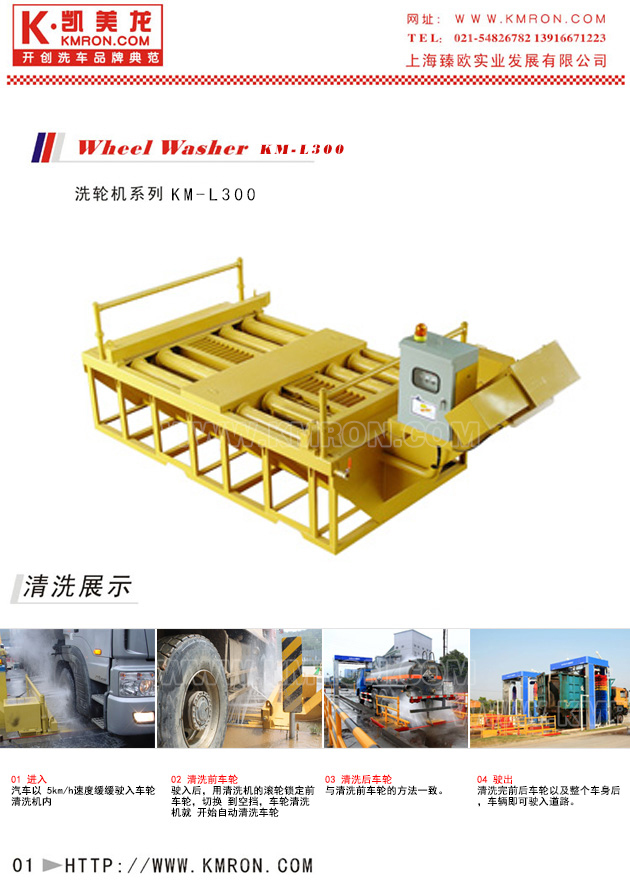

KMRON KM-L300SeriesRoller-typeWheel Washer, Using WheelAutomatic rotation 360 ° design, it can achieve a more thorough washing effect. To thoroughly clean various types of Engineering vehicles and solve the problem of dust pollution from Engineering vehicles to roads and skies. thisCar Wash SlotThe system has features such as thorough washing effect, fast washing speed, and easy equipment installation. On average, it can wash 60-80 vehicles per hour, recycle water, and save a large amount of water resources. Applicable to various landfill sites, construction sites, concrete plants, mines, industrial manufacturing and other places. This Wheel Wash is suitable forCar Wash SlotCompared to fixed and high demand for Car Wash effects, this series of fully Automated Wheel Washers has been widely applied in landfill sites and various construction sites.

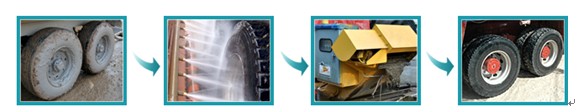

Three, System Diagram:
4. Product Features:
1. Achieve perfect and thorough wheel washing effect:
KM-L300Roller-typeWheel WasherWill set the Wheel Automatic above the roller to rotate 360 °, while achieving high-pressure and strong force washing through the bottom and side three-dimensional nozzles, achieving a perfect and thorough wheel washing effect. Applicable in densely populated areas, while paying particular attention to the 2 times environmental pollution in the heart of the city.
2. Computer Automatic Control System:
The system implements fully automated control of all processes, such as wheel washing and sediment discharge, from entering to exiting the vehicleCar Wash SlotThe washing site does not require additional personnel to be arranged.
3. Ultra high stability, ultra-low failure rate, and most excellent durability:
By using the most excellent specialized parts and highest grade materials that comply with the mechanical features of Wheel Washers, this system has unique advantages of "ultra-high stability, ultra-low failure rate, and most excellent durability", demonstrating different stability and durability compared to other branded Wheel Washers during the use process.
Vehicle washingDescription: Roller type
|
